The components of vehicle disinfection equipment and the types of disinfection equipment we handle are listed.You are free to choose which type of disinfection device you want to customize.

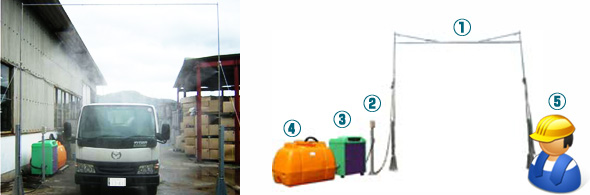

Components of vehicle disinfection equipmentThe vehicle disinfection equipment consists of gates (injection parts), operation boxes, pump units, chemical liquid tanks, and administrators.The role of each element is described below.
This is where the disinfectant is sprayed.
Types of injection gates include a gate type that injects chemicals from the side + top, a side type that injects only the side, and a lower type that injects only from the bottom.
The standard material is stainless steel, but it can be customized to resin or the desired material.
It is a switch for spraying disinfectant.
Starting methods for spraying are push button type, sensor type, card type and authentication tip type.By customizing the injection switch, it is possible to change the injection time, injection amount, injection point, etc.
It is a unit for sending the chemical solution from the tank to the injection gate.
The pump unit consists of an injection pump, a motor and a control panel. The standard type is 2.2KW 20.5L / min, but we also have 3.7KW to 5.5KW types.
By customizing the pump unit, it is possible to automate the production, supply, concentration measurement, etc. of chemicals.
It is a tank for storing chemical liquid.
The standard specification is 500L of resin, which is resistant to chemicals.
Also, the capacity of the tank is available in different sizes from 10L to 5,000L.
By customizing the chemical tank, it is possible to automate the stirring of chemicals and water and control the concentration of chemicals.In addition, the tank is equipped with a water level sensor, which is designed so that it will not run idle even if the chemical solution is empty.
An administrator is required to operate the disinfection device.
The administrator should manage of manufacturing disinfectant, controlling injection and controlling freezing during winter.
By customizing each part of the device, it is possible to automate these tasks performed by the administrator.
.png){kind=small}
Types of our vehicle disinfection equipment
It is a standard type disinfecting equipment used by many customers.
The standard type is a packaged product that includes equipment used by many customers, so it is inexpensive and can be customized as you want. It is used in many facilities.
| Parts | Contents |
|---|---|
 Gate (injection part) |
It is a gate type and injects chemicals into stainless steel pipes from 3 injection nozzles on each side and 2 injection nozzles on the top.Installation is secure with anchor stopper + wire, so it is safe and secure. |
 Injection switch |
The starting method is an ON-OFF push button switch type with an installation pole.The driver pushes it before entering, it is possible to make a thorough pause.The height of the switch is set to a height that can be operated from the driver's seat of a passenger car. |
 Pump unit |
The pump is 20.5L / min, the motor is 1.5KW, and the control panel is a mechanical type. The unit is an outdoor rainproof specification, and it can be easily moved with casters. The unit is equipped with an anti-freezing heater as standard equipment to protect the injection pump from freezing. |
 Chemical tank |
The chemical tank is made of resin and 500L capacity as standard, and when the chemical is full, it can be operated without replenishment even if it is sprayed on 30 or more vehicles. It is equipped with a water level sensor to prevent idle operation as standard so it can prevent damage to the pump and pump parts. |
 Administrator |
It is necessary to manage the gate and piping hose freezing, stirring the chemical solution and controlling the concentration, |
.png)
.png)
It is the cheapest vehicle disinfection equipment. It is the most suitable type for temporary purposes, small-scale farm installations, and mobile installations.
| Parts | Contents |
|---|---|
| Gate (injection part) |
It is a side type and sprays chemicals from 3 nozzles on each side. |
| Injection switch |
The starting method is a push button type, and after injection, it automatically stops with a timer. The switch box will be installed on the wall or pillar by the customer. |
| Pump unit |
It uses 2 power sources of open type (motor type) and has a capacity of 1.5KW (2 horsepower). It is 2 power sources so it can be easily moved regardless of the installation location of the device. (It does not have an anti-freezing device so it is not suitable for installation in cold regions.) |
| Chemical tank |
Customers are requested to prepare the chemical tank. |
| Administrator |
It is necessary to check the amount of chemical solution every day because the pump may run idle and be damaged when the chemical solution is drought. |
It is a type of disinfection equipment that allows you to freely create it matches your individual needs.
By combining various customizations, disinfection equipment suitable for all regions and industries is completed.
| Parts | Contents |
|---|---|
| Gate (injection part) |
There are three types of basic gate type, side type and lower type but you can freely design the shape and size. |
| Injection switch |
You can select from multiple push buttons, sensors, authentication cards, etc. |
| Pump unit |
You can freely choose indoors and outdoors, design the pump capacity and various controls. |
| Chemical tank |
Widely compatible with undiluted solution tanks and injection mixing tanks from 10L to 5000L. |
| Administrator |
It is necessary to manage the undiluted chemical according to the dilution, but it is also possible to notify from the device by using the management device. |
